e360 Heat Pump Water Heater, Cold-Climate, Air-Source

High-efficiency Nyle water heating systems for sustainable, lead-free hot water solutions.

View in 3D or AR

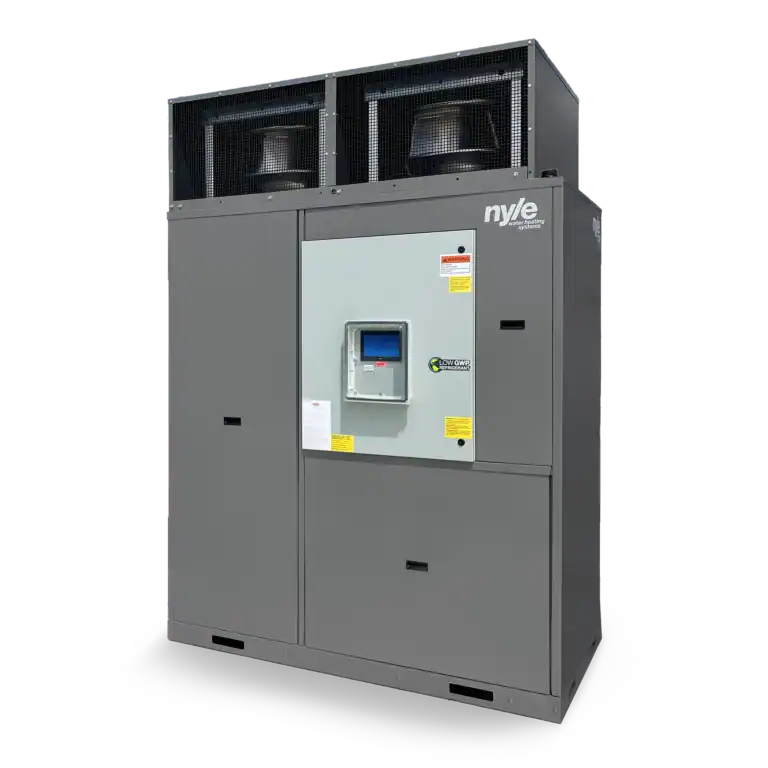

e360 Heat Pump Water Heater, Cold-Climate, Air-Source

Air Source

Nyle model e360 is a monobloc style, cold climate, air source heat pump for commercial domestic hot water heating.

Cold Weather Performance

Operates down to 10°F ambient with advanced freeze protection and defrost systems.

Boosts Energy Efficiency

Achieve up to 405 GPH recovery while maintaining low operating costs.

Reduces Carbon Footprint

Uses a Low GWP refrigerant and no fossil fuels, reducing environmental impact.

Request Selection

Find a Rep

Product Documents & Resources

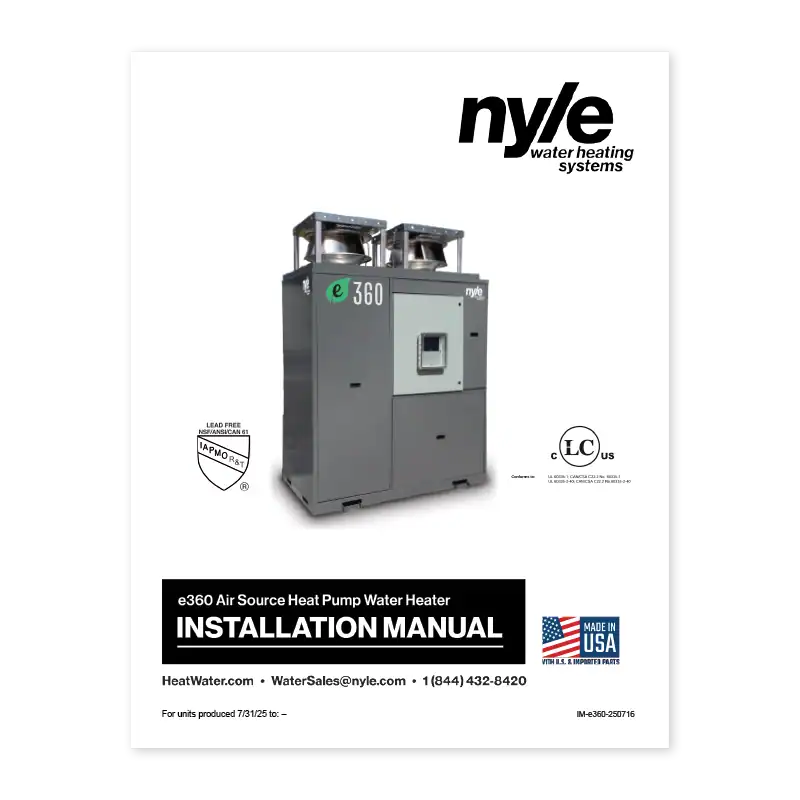

Programming & Operation Manuals

Wiring Schematic (230V)

Wiring Schematic (460V)

Points List

Service Diagrams

Looking for more documents?

Find a Rep

Standard Features

NSF-61 Lead Free certified
Low GWP Refrigerant for SNAP Compliance
Integral Circulator and ECM Fans
Option for Build America Buy America compliance
160 Degree Fahrenheit – maximum service water temperature
Monobloc design for easy installation
High efficiency, cold climate, air-source heat pump water heater
Industry leading factory support and order lead times
Active defrost and two stages of onboard freeze protection
Dual power feed for easy generator backup of freeze protection functions
Fully Ductable on intake and discharge sides

Technical Specifications

Voltage(s)

460V208V230V

Ambient Operating Range (Low)

10°F

Ambient Operating Range (High)

120°F

Max Temperature

160°F

Max Pressure

150 psig

Compressor

Reciprocating

Water Connections

1-1/4" FPT Copper

Recovery Rate

405 Gal/hr

Flow Rate (Single-Pass)

16 GPM

Dimensions (in.)

L40 x

W72 x

H101.25

Weight

2300 lbs. (Dry)

/ 2400 lbs. (Operating)

← Back to All Products

View in 3D or AR

Air Source

e360 Heat Pump Water Heater, Cold-Climate, Air-Source

Nyle model e360 is a monobloc style, cold climate, air source heat pump for commercial domestic hot water heating.
