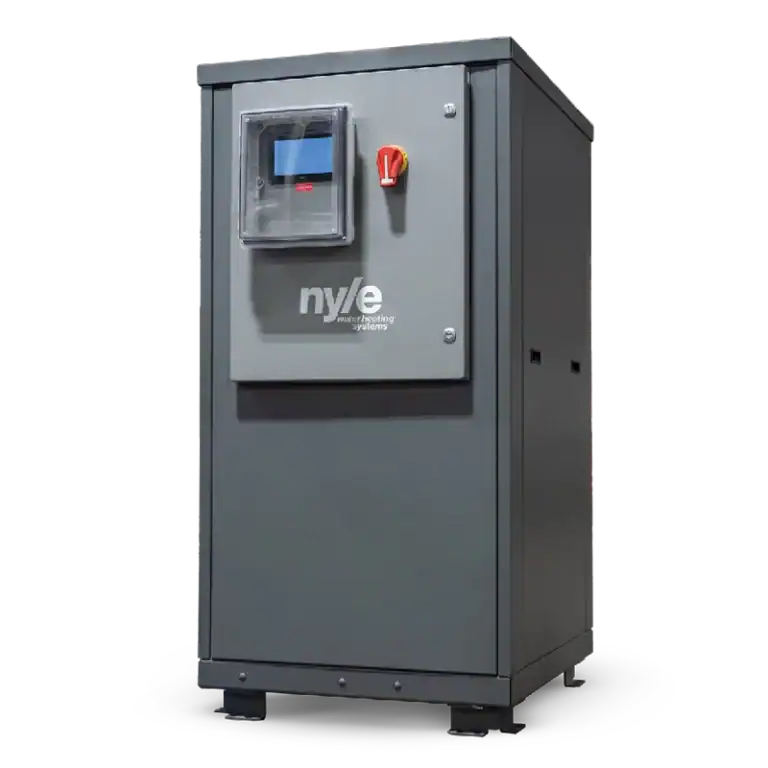

C270WM Heat Pump Water Heater, Modular, Water-Source

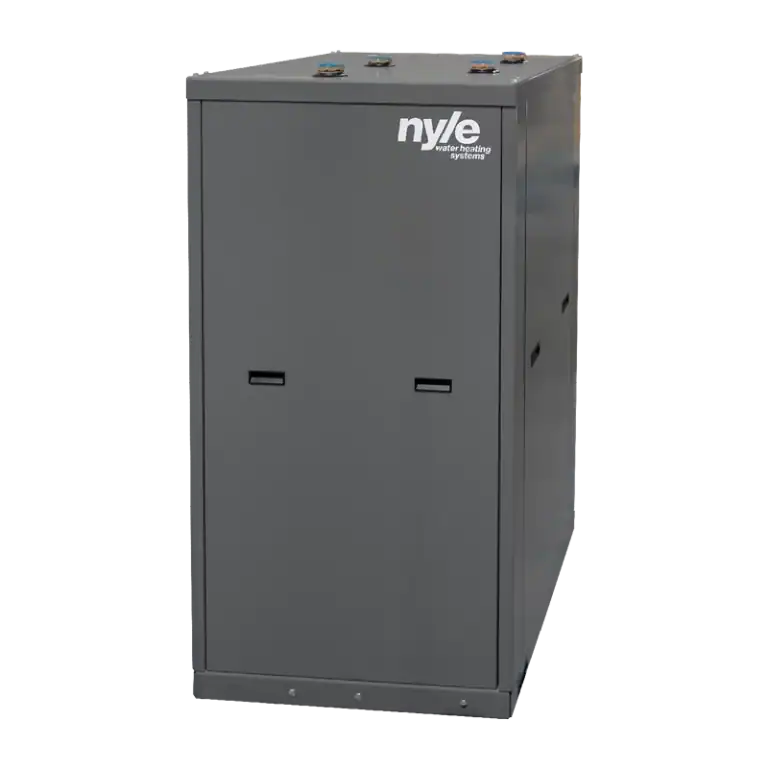

The back of a Nyle C270WM water source heat pump water heater showing the water connections at the top.

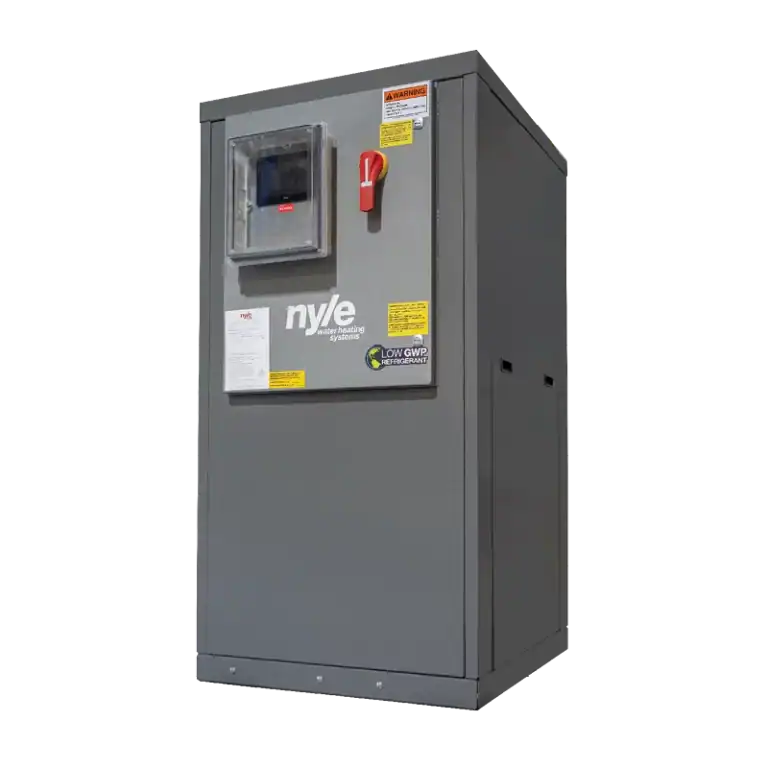

#-quarter view of a Nyle C270WM water source heat pump water heater.

High-efficiency Nyle water heating systems for sustainable, lead-free hot water solutions.

C270WM Heat Pump Water Heater, Modular, Water-Source

Water Source

Modular

Nyle Water Heating Systems Model C270WM is a monobloc style, water source heat pump for commercial domestic hot water heating, capable of operation at water temperatures up to 175 Deg F.

Water Temps up to 175°F

Ideal for large scale applications and heat recovery

Modular Design

Zero side clearance for flexible capacity

575V Option Available

Additional voltage option for non-US applications

Request Selection

Product Documents & Resources

Submittal/Spec Sheet

Installation Manual

Guide Specifications

Wiring Schematic (230V)

Wiring Schematic (460V)

Wiring Schematic (575V)

Programming & Operation Manuals

Looking for more documents?

Standard Features

Low GWP Refrigerant
Integral circulator – ready to handle external piping
Double wall DHW heat exchanger, direct pipe ready
Build America Buy America compliant
175 degree Fahrenheit – maximum service water temperature
Controllable with external controls, BMS, or included tank sensors
High efficiency, water-source heat pump water heater
575V primary power version available
Modular design with zero side clearance required
Industry-leading factory support and order lead times

Technical Specifications

Capacity

278800 BTU/h

COP

4.1

Voltage(s)

208V230V

Ambient Operating Range (Low)

35°F

Ambient Operating Range (High)

120°F

Max Temperature

175°F

Max Pressure

150 psig

Compressor

Scroll

Heat Exchanger

Double-wall DHW

Water Connections

2" FPT Copper

Recovery Rate

664 Gal/hr

Flow Rate (Single-Pass)

22 GPM

Flow Rate (Multi-Pass)

36 GPM

Dimensions (in.)

L32.5 x

W39 x

H66.25

Weight

1074 lbs. (Dry)

/ 1113 lbs. (Operating)
